Space Planning for Outdoor Fitness Equipment: A Practical Buyer’s Framework

Institutional buyers rarely struggle to find outdoor fitness equipment options. The real challenge is how to fit the right mix of equipment into the space you actually have—while meeting safety clearances, accessibility requirements, and stakeholder expectations.

This guide gives you a step-by-step space planning framework for outdoor fitness equipment so you can move from “we’d like an outdoor gym” to a confident, defensible layout plan. You’ll get:

• A clear needs and site assessment checklist

• Space planning rules of thumb and layout considerations

• A decision framework with key evaluation factors

• Option comparisons (compact pods vs. fitness trails vs. large outdoor gyms)

• Facility-specific tips (focused on municipal parks & recreation)

• Implementation guidance and practical tools: matrices, worksheets, and RFP checklists

This article assumes you already understand why you want outdoor fitness and are now focused on how to plan the space effectively.

Throughout, we’ll reference examples from our experience delivering outdoor fitness projects for 200+ parks, schools, HOAs, and campuses across the U.S.

---

Understanding Space Planning for Outdoor Fitness Equipment

Typical buyer scenario

You’re responsible for a park, trailhead, school campus, HOA common area, or wellness campus and have been tasked with “adding outdoor fitness.” You may have:

• A defined area (e.g., 30x40’ pad near a playground)

• A linear corridor (along a walking trail)

• Several small pockets of space near existing amenities

You need to decide:

• What type of outdoor fitness environment to create (compact pod, circuit, trail, large gym, etc.)

• How many users it should support at once

• How to fit equipment safely and accessibly within the available footprint

• How to phase or expand the layout in the future

What makes this application unique?

Outdoor fitness space planning is different from indoor gyms because:

• Fixed equipment & permanent surfacing

  • Post-mounted, in-ground, or surface-mounted equipment is difficult to move once installed. Getting the layout right the first time is critical.

• Clearances & circulation outdoors

  • Safety zones, ADA routes, strollers, bikes, and general park circulation all interact with your fitness area.

• Multi-use public settings

  • Space often needs to coexist with playgrounds, courts, shelters, or parking.

• Unsupervised use

  • Layout must minimize conflicts and confusion without staff supervision.

Key stakeholders and decision factors

• Parks & Recreation leadership – community outcomes, usage, risk management

• Public works / facilities – maintainability, durability, access to utilities

• Risk management / safety committee – compliance, clearances, visibility

• Finance / grants team – budget, match funds, total cost of ownership

• Community / user groups – seniors, families, athletes, inclusive/ADA users

Space planning decisions must help you justify the project across all of these perspectives.

---

Assessment & Planning: Laying the Groundwork

Before choosing equipment or drawing layouts, work through these assessment steps.

1. Needs assessment framework

Use this quick worksheet:

Program Goals (check all that apply):

• General community wellness

• Active aging / senior fitness

• Youth/teen activity

• Sports performance / athletic training

• Accessible / inclusive fitness

• Rehabilitation / low-impact movement

• Staff/employee wellness (campus/corporate)

Primary Outcomes:

• Increase park usage

• Support grant or health initiative

• Activate underused space

• Reduce health disparities

• Support nearby amenities (trail, playground, pool)

Tip: If you can’t clearly state your top 2–3 goals, you’re not ready to finalize equipment or layout.

---

2. Site and space evaluation criteria

Walk the site with this checklist:

Site Assessment Questions

• What is the total usable footprint (length x width or linear distance)?

• Are there grade/slope issues that affect surfacing or equipment anchoring?

• Where are existing utilities (electricity, water, drainage)?

• How does sun, shade, and wind affect comfort and safety?

• Are there sightlines from parking, roads, or staff offices?

• How close is the area to complementary amenities (playground, path, courts, pool, restrooms)?

• Are there access routes that meet ADA requirements for slope and surface?



---

3. User demographic analysis

Identify who you’re really designing for:

• Age groups:

  • 14–24 [ ] 25–54 [ ] 55+

• Ability level:

  • Primarily beginners

  • Mix of fitness levels

  • Athletic / performance-focused

• Accessibility/inclusion:

  • Wheelchair users expected

  • Assisted users (care partners, PT staff)

  • Multilingual signage needed

This informs equipment height, resistance levels, circulation width, and layout simplicity.

---

4. Budget and timeline considerations

Budget Planning Worksheet (high level)

Item	Low Range	Typical Range	Notes
Equipment package	$$	$$–$$$	Depends on quantity & brand
Surfacing (concrete, rubber, etc.)	$$	$$–$$$ per sq. ft.	Larger impact for bigger footprints
Site prep & installation	$$	$$–$$$	Demolition, grading, anchors
Design & engineering (if required)	$–$$	$$	Stamped drawings, permits
Signage & instructional panels	$–$$	$$	Key for unsupervised use
Contingency (10–15%)	$$	$$	Cover unknowns

(Replace $ markers with your actual cost ranges based on internal data or vendor quotes.)

Timeline & procurement process

• Planning & stakeholder alignment: 4–8 weeks

• Procurement & approvals (including grants/RFPs): 6–16 weeks

• Manufacturing lead time: 8–12 weeks (varies by brand & package)

• Installation & inspection: 1–3 weeks

Include these phases in your internal project plan or Gantt chart.

---

Selection Criteria & Space Planning Decision Framework

Use the following framework to evaluate space planning options and equipment layouts. We’ll highlight 7 key factors.

Factor 1: Available Footprint & Shape

• Why it matters: Dictates whether a pod, circuit, or trail model is realistic.

• How to assess: Measure total square footage and note whether the site is rectangular, irregular, or linear.

• What to look for:

  • Minimum of 400–600 sq. ft. for a small pod (5–7 stations).

  • Wider linear space for circuits/trails to maintain clear walking paths.

• Common mistake: Trying to fit “too many stations” in a small area and compromising clearances.

---

Factor 2: User Capacity & Peak Usage

• Why it matters: Avoids crowding, wait times, and perceived failure.

• How to assess: Estimate peak users (e.g., lunch hour, after school, weekend mornings).

• What to look for:

  • Rule of thumb: 1–2 multi-user stations per 5 expected peak users.

  • Include at least one low-intensity / stretching area.

• Common mistake: Planning only for average use, not peak events or programs.

---

Factor 3: Safety Clearances & Circulation

• Why it matters: Reduces collision risk, supports ADA accessibility, and supports insurance/compliance requirements.

• How to assess: Review manufacturer’s recommended use zones and ADA guidelines for clear routes.

• What to look for:

  • 3–6 ft minimum between moving equipment components.

  • At least one accessible route through or alongside the space.

  • Clear lines of sight for natural supervision.

• Common mistake: Treating outdoor fitness like a tight indoor gym floor—outdoors needs more buffer.

---

Factor 4: Surfacing & Drainage

• Why it matters: Impacts safety, maintenance, comfort, and cost.

• How to assess: Soil type, existing hardscape, water flow patterns.

• What to look for:

  • Durable, slip-resistant surfaces (concrete, engineered wood fiber, or poured-in-place rubber depending on use).

  • Positive drainage away from pads.

• Common mistake: Under-budgeting surfacing and ending up with muddy, uneven ground around equipment.

---

Factor 5: Accessibility & Inclusion

• Why it matters: Many grants and public projects require inclusive design. It also broadens community impact.

• How to assess: Evaluate routes from parking, bus stops, and nearby paths; consider adaptive equipment.

• What to look for:

  • At least one accessible route with compliant slope and surface.

  • Clear space adjacent to at least some stations for wheelchair transfer or participation.

• Common mistake: Adding “one accessible piece” but placing it in a location that’s hard to reach.

---

Factor 6: Integration with Other Amenities

• Why it matters: Good space planning makes the outdoor fitness area feel like part of the overall park experience.

• How to assess: Map distance to playgrounds, trails, courts, picnic shelters, and parking.

• What to look for:

  • Fitness near high-traffic flows but not blocking them.

  • Logical sequences: trail → fitness loop → seating → water fountain.

• Common mistake: Hiding equipment behind buildings or in low-visibility corners “where there’s room.”

---

Factor 7: Future Expansion & Phasing

• Why it matters: Grants and budgets often come in phases.

• How to assess: Identify adjacent space and potential add-on zones.

• What to look for:

  • Layouts that allow additional stations without re-doing surfacing.

  • Logical “Phase 2 pad” location or add-on circuit along a trail.

• Common mistake: Designing a one-off pad that can’t grow without major demolition.

---

Decision Matrix: Evaluating Space Planning Concepts

Use this simple matrix to score different concepts on a 1–5 scale (5 = excellent).

Factor	Concept 1: Compact Pod	Concept 2: Circuit	Concept 3: Fitness Trail
Fits available footprint
Supports expected user volume
Safety & circulation
Accessibility & inclusion
Integration with other amenities
Ease of maintenance
Future expansion



How to use: Have your internal team and vendor each score the concepts. Compare where you align or differ to guide discussion.

---

Options Analysis: Layout Models & Tradeoffs

Below are three common space planning models for outdoor fitness equipment.

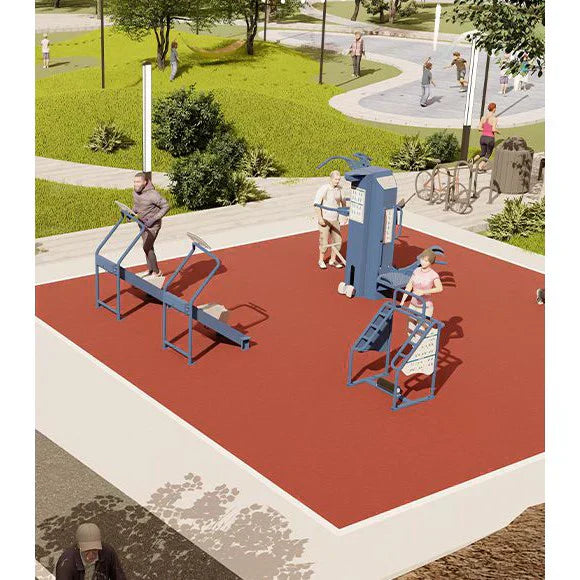

Option A: Compact Outdoor Fitness Pod

A single, defined pad with multiple stations grouped together.

Best for: Smaller parks, HOAs, schools, or sites with limited square footage.

Pros

• Easy to supervise/monitor

• Clear destination for users

• Efficient use of surfacing

• Simple for maintenance crews

Cons

• Limited circulation for large groups

• Can feel crowded at peak times

• Less synergy with walking/running activities

---

Option B: Outdoor Fitness Circuit Near a Path

Stations are arranged in a loop or linear circuit connected by a walking path.

Best for: Parks with existing loops or trails, campuses, and wellness programs.

Pros

• Encourages cardio + strength combinations

• Reduces crowding at any single point

• Supports programmed classes (circuit training)

Cons

• Requires more linear space and route planning

• Higher surfacing/installation cost if multiple pads

• Slightly more complex to wayfind without good signage

---

Option C: Fitness Trail / Distributed Stations

Individual stations placed along a longer trail or greenway, sometimes with distance markers.

Best for: Long corridors, greenways, multi-park systems.

Pros

• Activates underused trail segments

• Encourages longer, sustained activity

• Can be phased in over time

Cons

• Harder to supervise

• Less suitable for group classes

• Users may miss stations without clear wayfinding

---

Comparison Table: Which Model Fits Your Site?

Criteria	Compact Pod	Circuit Near Path	Fitness Trail
Minimum space required	400–600 sq. ft.	600–1,200 sq. ft. across pads	Long linear distance
Group programming	Good	Excellent	Limited
Supervision & visibility	Excellent	Good	Variable
Surfacing cost per user	Lower	Moderate	Higher per station
Integration with trail use	Fair	Good	Excellent
Ease of maintenance	Excellent	Good	Fair

Choose Option A if…

• Your site has one small, defined space near existing amenities.

• You want a high-impact “fitness node” that’s easy to find and supervise.

Choose Option B if…

• You have a loop or perimeter walk and expect group use.

• You want to encourage interval training and variety.

Choose Option C if…

• You manage a long trail or greenway and want distributed activity.

• You prefer a phased, station-by-station expansion model.



For equipment ideas that fit each approach, see our Outdoor Fitness Equipment Collections and Outdoor Fitness Packages for Parks.

---

Municipal Park–Specific Space Planning Considerations

While the core framework applies everywhere, municipal parks have unique requirements.

Unique requirements

• Multi-use spaces: Parks juggle playgrounds, fields, shelters, and courts. Fitness areas must fit within this mix.

• Community visibility & safety: Layout should support natural surveillance from paths, roads, and staff.

• Broad demographics: You’ll likely serve families, seniors, teens, and individuals with disabilities in one space.

Common challenges & solutions

Challenge	Practical Solution
Limited flat space near amenities	Use a compact pod near the playground or trailhead.
Concern about vandalism	Select robust, tamper-resistant equipment and place in visible areas.
Budget constraints	Start with a Phase 1 pod with built-in expansion zones.
Multiple stakeholders (Council, Board)	Use clear layouts and decision matrices in presentations.

Budget nuances

• Grants and health initiatives often prioritize inclusive, ADA-friendly fitness near existing community hubs.

• Parks often benefit from bundled packages (equipment + surfacing + design), simplifying procurement and budgeting.

Stakeholder management tips

• Bring concept sketches and layout options early to Parks Boards or Councils.

• Use a simple decision matrix to show how the recommended layout best meets agreed-upon criteria.

• Document maintenance expectations (inspection routines, cleaning) to reassure public works.

For more detailed municipal guidance, see Outdoor Fitness for Parks & Recreation Departments.

---

Implementation Planning: From Layout to Reality

Once you’ve selected your layout concept and approximate equipment mix, focus on execution.

Timeline and phasing

Create a simple timeline with these milestones:

1. Concept approval (internal + council/board if applicable)

2. Vendor selection / RFP

3. Final layout & surfacing design

4. Manufacturing & shipment

5. Site prep & installation

6. Final inspection & punch list

7. Public launch & promotion

---

Vendor evaluation criteria

Use this checklist when comparing vendors:

• Provides site-specific layout drawings and 3D renderings

• Clearly documents use zones, clearances, and ADA routes

• Offers turnkey packages (equipment + surfacing + install) or coordinates with installers

• Supplies maintenance manuals & inspection checklists

• Has experience with similar facility types and can provide references/case studies

• Supports grant documentation (cut sheets, specs, photos)



Ready to explore layout ideas? See Equipment Options for Municipal Parks.

---

Installation & staff training

• Confirm who is responsible for site prep, concrete, equipment assembly, and anchors.

• Plan for on-site inspection to verify clearances and surfacing before opening.

• Train staff on:

  • Visual safety checks

  • Reporting procedures for damage or vandalism

  • How to explain basic equipment use to the public

Success metrics

Post-installation, track:

• Observed user counts at different times of day

• Feedback from community and staff

• Incidents and maintenance callouts

• Alignment with your original goals (e.g., increased park use, senior participation)

Use this to inform future phases or additional sites.

---

Practical Tools: Checklists & RFP Requirements

Quick Evaluation Checklist (Pre-RFP)

• Program goals and primary users defined

• Site measured and documented (photos + sketch)

• Preferred layout model chosen (Pod / Circuit / Trail)

• Budget range and timeline set

• Internal stakeholders aligned on key decision factors

• Shortlist of vendors identified

RFP Requirements List (Space Planning Focus)

Include language requesting:

• Site-specific layout drawings with dimensions

• Use zone and clearance details for all equipment

• Description of surfacing type, thickness, and drainage

• ADA accessibility plan (routes, transfer areas)

• Phasing or expansion options

• Installation scope and responsibilities

• Warranty terms and service/maintenance expectations

---

FAQ: Space Planning for Outdoor Fitness Equipment

1. How much space do I need for an outdoor fitness area?
For a small pod serving 5–10 users at a time, plan on 400–600 sq. ft., plus safe clearances and circulation paths. Larger circuits or trails will require more linear space along paths.

2. How do I decide between a pod, circuit, or fitness trail?
Look at your available footprint, user goals, and adjacent amenities. Pods work best in tight spaces near playgrounds; circuits fit well around loops; trails are ideal for long corridors.

3. What are the most important layout factors to consider?
Focus on safety clearances, accessibility, visibility, and integration with existing amenities. If those are strong, the rest (aesthetics, equipment mix) is much easier.

4. How wide should circulation paths be around equipment?
Aim for at least 3–4 ft of clear walking space between equipment zones, and more in high-traffic or accessible routes.

5. How do I plan for accessibility in an outdoor fitness space?
Ensure accessible routes from parking or main paths, consider ground-level and transfer-friendly equipment, and leave clear side spaces for mobility devices.

6. How much should I budget for surfacing?
Surfacing costs vary widely, but it can represent 20–40% of project cost. Get early budgetary estimates for concrete or safety surfacing so you don’t over-spec equipment.

7. How long does it take to plan and install an outdoor fitness area?
From initial planning to opening day, most projects run 4–8 months, depending on procurement processes, lead times, and site work needs.

8. What questions should I ask vendors about space planning?
Ask for site-specific layouts, clear use zones, ADA details, example projects at similar facilities, and alignment with your future expansion plans.

9. Can I phase the project over multiple years?
Yes. Many parks start with a Phase 1 pod plus surfacing that anticipates additional stations or nearby pods in later phases.

10. Where should I place outdoor fitness equipment in relation to other park amenities?
Ideally near existing traffic generators (playgrounds, paths, courts), with good visibility and not too close to parking or roads for safety.

---

Conclusion & Next Steps

Effective outdoor fitness equipment space planning is less about picking individual pieces and more about designing an environment that fits your site, users, and long-term goals. By:

• Clarifying program goals and user demographics

• Carefully assessing site conditions and footprint

• Selecting the right layout model (pod, circuit, or trail)

• Applying a structured decision framework to evaluate options

• Planning for accessibility, safety, and future expansion

…you can present a layout that is easy to defend to stakeholders and set your community up for success.

Next actions:

1. Download the Outdoor Fitness Space Planning Checklist and complete it for your site.

2. Review layout models and identify which best matches your footprint and goals.

3. When ready, request a consultation with an outdoor fitness specialist and get a custom layout and quote tailored to your facility.



• See Equipment Options for Your Facility Type

• Request Consultation & Custom Layout
