Cantilever Shade Structures: The Complete Guide for Playgrounds and Commercial Applications
For commercial playgrounds, parks, and institutional campuses, shade is more than a comfort upgrade. It is a performance and risk-management decision that influences how long a space stays usable, how hot surfaces get, and how well a site meets accessibility and safety expectations.
Cantilever shade structures are one of the most flexible ways to add large-area coverage without placing posts in the middle of high-traffic zones. Their “offset” support design can protect play events, fitness zones, seating, and drop-off areas while keeping the ground plane clear.
Outdoor Workout Supply works with B2B buyers to specify shade solutions that fit real-world constraints like surfacing, underground utilities, ADA routes, and local wind and snow requirements.
Contact us: If you are planning a new build or retrofit, contact us to talk through coverage goals, site constraints, and timelines.
What Is a Cantilever Shade Structure?
A cantilever shade structure is a tensioned-fabric or rigid-roof canopy supported by columns that are positioned to one side (or at the perimeter), rather than centered under the covered area. Structural members (beams, arms, or trusses) extend outward to hold the canopy over the target zone.
Why the cantilever design matters
- Clear ground space: Fewer interior columns helps reduce trip hazards and improves circulation for children, older adults, wheelchairs, strollers, and maintenance equipment.
- Better coverage over fixed features: Cantilever configurations can shade play components, benches, splash zones, or outdoor fitness equipment where interior posts would conflict.
- Flexible placement near edges: Posts can often be placed outside surfacing boundaries or behind curbs to simplify site layout.
Typical core components
- Support columns: Often steel, powder-coated or galvanized.
- Cantilever arms / beams: The primary structural element that projects over the shade footprint.
- Canopy material: Usually HDPE shade cloth (common for playgrounds) or PVC-coated fabric (for higher tension and certain architectural designs). Some applications use rigid roof panels.
- Footings and anchors: Engineered foundations that meet soil, wind, and snow load requirements.
Cantilever Shade Structure Types (and Where They Fit Best)
Because “cantilever” describes the structural concept, there are multiple product formats that may qualify depending on the manufacturer.
1) Single-post cantilever shades
A single-column design can cover a surprising footprint, especially for small seating pods, signage areas, or compact play elements.
Best for:
- Benches and bleachers
- Picnic tables
- Small outdoor classrooms
- Single pieces of outdoor fitness equipment
Considerations: Deflection, footing size, and load ratings become more important as span increases.

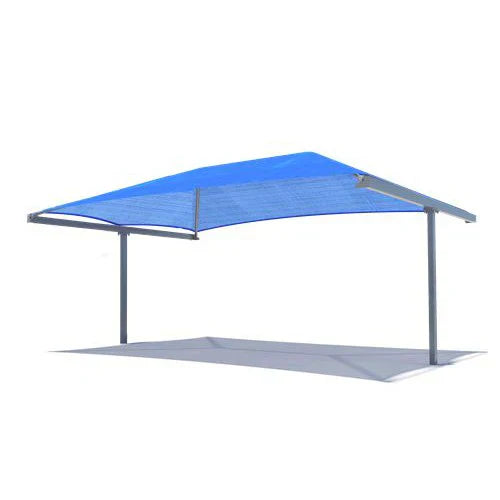

2) Dual-post cantilever shades
Two perimeter columns support a larger canopy, often used to cover long rectangular spaces like seating rows or walkways.
Best for:
- Queue lines and entry gates
- Spectator seating
- Linear outdoor fitness zones
- Pick-up and drop-off sidewalks
3) Multi-bay cantilever systems (modular coverage)
Multi-bay systems connect repeated modules to cover a large field of use. This is where cantilever shade structures often shine for commercial campuses.
Best for:
- Large playgrounds
- Multi-station outdoor fitness areas
- Park pavilions without interior obstructions
- Courtyards at hospitals, senior living, and hotels
4) Hip, pyramid, and custom-geometry cantilever canopies
Some projects require architectural aesthetics or coverage over irregular shapes. Custom geometries can complement modern site design and branding.
Best for:
- Municipal signature parks
- High-end hospitality courtyards
- Healthcare healing gardens
- Campus entry features
Common Applications for B2B Buyers
Cantilever shade structures are used wherever you need maximum shade with minimal obstruction. Here are the most common commercial and institutional use cases.
Schools and childcare centers
- Shade over high-use playground zones to reduce heat exposure during recess.
- Coverage for outdoor learning areas.
- Cleaner layouts around fall-zone surfacing where interior posts create planning challenges.
Buyer note: Schools often prioritize predictable procurement, durability, and low maintenance. Cantilever designs can help keep posts outside the most active play areas.
Municipal parks and recreation
- Shade over inclusive play areas
- Shaded seating for caregivers
- Event nodes and picnic areas
- Shade at skate parks or pump tracks (when feasible with load and layout)
Buyer note: Municipalities benefit from designs that reduce long-term liability and keep maintenance access open.
Senior living communities
- Shade along walking loops
- Shaded outdoor seating and gathering spaces
- Covered fitness areas designed for low-impact use
Buyer note: Minimizing trip hazards and improving thermal comfort can increase outdoor utilization for residents.
Hospitals and healthcare campuses
- Shaded courtyards and healing gardens
- Covered waiting or drop-off edges
- Shade for staff break areas
Buyer note: Look for materials and finishes that align with cleaning standards and long-term appearance.
Hotels, resorts, and hospitality
- Courtyard seating
- Pool deck zones (site-specific; verify corrosion resistance and wind requirements)
- Outdoor dining and lounge areas
Buyer note: Aesthetic cohesion matters. Cantilever shades can deliver a sleek profile and open sight lines.
Corporate campuses and municipalities (public facilities)
- Shade for outdoor break areas
- Covered pathways between buildings
- Shade near recreation courts and fitness zones
Browse products: Ready to explore configurations? Browse products to compare cantilever options by footprint, fabric type, and commercial-grade finishes.
How to Specify the Right Cantilever Shade Structure
Commercial shade selection is not just about choosing a canopy size. The best results come from matching the structure to use patterns, code requirements, and site constraints.
1) Coverage goals and shade performance
Start by defining what “success” looks like:
- Are you aiming to reduce surface temperatures on play components?
- Do you need shade during specific hours (morning vs. afternoon)?
- Are you prioritizing shade over equipment, benches, or circulation paths?
Tip: Sun angles shift significantly by season. For year-round usability, orientation matters as much as canopy size.
2) Post placement and obstruction-free planning
Cantilever designs reduce interior columns, but every project still has realities to work around:
- Fall zones and safety surfacing boundaries
- ADA routes and turning radii
- Maintenance access for inspections and cleaning
- Sight lines for supervision and security
3) Engineering, wind, and snow loads
Load requirements vary by region and municipality. A shade structure that works in one location may require different engineering in another.
- Wind rating: Especially important for coastal and open-field sites.
- Snow load: Critical in northern climates.
- Seismic considerations: Required in some regions.
Your project should use site-specific engineering aligned with local code.
4) Canopy material: HDPE vs. PVC vs. rigid roof
HDPE shade cloth
- Common for playgrounds
- Breathable and helps reduce heat buildup
- Often offered in multiple shade factors (e.g., 80–95% UV blockage range depending on fabric)
PVC-coated fabric (architectural membrane)
- Higher tension, cleaner lines
- Often used for architectural canopies
- Can deliver a more “finished” look for hospitality and civic spaces
Rigid roof panels
- Full rain coverage (depending on design)
- Different acoustics and heat behavior
- Often requires more drainage planning
5) Finish, corrosion resistance, and long-term appearance
Commercial buyers should evaluate:
- Powder coating options
- Galvanization specifications
- Hardware materials
- Environmental exposure (salt air, chemicals near pools, industrial areas)
6) Foundations, utilities, and site prep
Footings may be larger for cantilever structures due to the offset loads. Plan early for:
- Utility locates
- Soil conditions
- Coordination with surfacing and concrete work
- Drainage and slope
Request a quote: Share your site plan and desired coverage area to request a quote with a preliminary layout and budget range.
Cantilever vs. Traditional Post-In-Field Structures
Cantilever systems are not always the answer. Here is a practical comparison.
When cantilever is a strong fit
- You want clear fall zones or unobstructed movement.
- You are shading fixed features where center posts would interfere.
- You need clean sight lines for supervision.
- You have perimeter space for columns and footings.
When a traditional multi-post structure may be better
- Your site cannot accommodate the larger perimeter footings.
- You need the most cost-efficient coverage per square foot.
- You have fewer constraints under the canopy footprint.
A consultative approach often starts with “coverage outcomes” and then works backward into structural format.
Planning and Procurement for Institutions
B2B projects live or die by coordination. A few planning best practices can reduce delays and change orders.
Align internal stakeholders early
For schools, municipalities, and healthcare campuses, involve:
- Facilities and maintenance
- Safety and risk management
- Procurement
- Site design or civil engineering
- Accessibility compliance stakeholders
Confirm installation sequence
Shade often touches multiple scopes:
- Concrete and foundations
- Surfacing (rubber, engineered wood fiber, etc.)
- Equipment vendors (play, fitness, seating)
- Electrical (lighting or cameras, if included)
Documentation to expect
- Shop drawings
- Engineering calculations stamped for your jurisdiction (as required)
- Product data sheets
- Warranty documentation
- Maintenance guidelines
Contact us: If your project requires coordination across surfacing, play, and fitness, contact us so we can help sequence the scope and reduce rework.
Maintenance and Lifecycle Considerations
Commercial shade structures are long-life assets when maintained.
Routine checks
- Inspect fabric tension and attachment points
- Check hardware for corrosion
- Confirm column plumb and base conditions
- Clean canopy according to manufacturer guidance
Replacement planning
Fabric canopies may be replaced over time without replacing the full structure (depending on system). This can be useful for:
- Extending asset life
- Refreshing aesthetics
- Updating shade factor or fabric color
FAQ: Cantilever Shade Structures for Playgrounds and Commercial Sites
1) Are cantilever shade structures safe for playgrounds?
Yes, when properly engineered and installed for the site’s load requirements and the playground layout. Post placement at the perimeter can also help reduce interior obstacles in active zones.
2) How much area can a cantilever shade cover?
Coverage varies by design, span, and engineering. Modular multi-bay systems can shade large footprints, while single-post options are typically used for smaller targets like seating or equipment nodes.
3) What fabric is best for playground shade?
Many playground projects use HDPE shade cloth for breathability and UV reduction. Some architectural applications prefer PVC-coated membranes for a more tailored look.
4) Do shade structures help reduce playground surface temperatures?
Shade can significantly reduce direct solar gain on surfaces and equipment. Actual temperature reduction depends on canopy size, height, orientation, material choices, and local climate.
5) What wind rating do we need?
Wind requirements are jurisdiction- and site-specific. A reputable supplier will help identify the correct design criteria based on local code, exposure category, and project location.
6) Can posts be installed outside the safety surfacing area?
Often, yes, and that is a common advantage of cantilever designs. Final placement depends on required setbacks, foundations, utilities, and the manufacturer’s engineering.
7) How long do commercial shade structures last?
The steel frame can last for decades with appropriate coatings and maintenance. Fabric life varies based on UV exposure, weather, and material type.
8) What does the installation process typically involve?
Most projects include foundations, structural framing, and then canopy installation. Coordination with surfacing and adjacent trades is important for schedule and warranty compliance.
9) Can we add lighting, signage, or cameras to the structure?
Some systems support accessories, but it should be planned early to account for wiring routes, mounting details, and structural loads.
10) What information do you need to quote a cantilever shade structure?
A site plan (or aerial with dimensions), target coverage zones, desired clearance height, location for wind/snow loads, and any aesthetic or color preferences.
Build Shade That Matches How People Use the Space
The best shade investments increase site usability, reduce heat stress, and simplify circulation without creating new obstacles. Cantilever shade structures are a proven option for playgrounds and commercial environments when you need wide coverage with a clear ground plane.
Request a quote: When you are ready, request a quote from Outdoor Workout Supply with your site plan and coverage goals, and we will recommend a cantilever configuration aligned with your budget and timeline.
