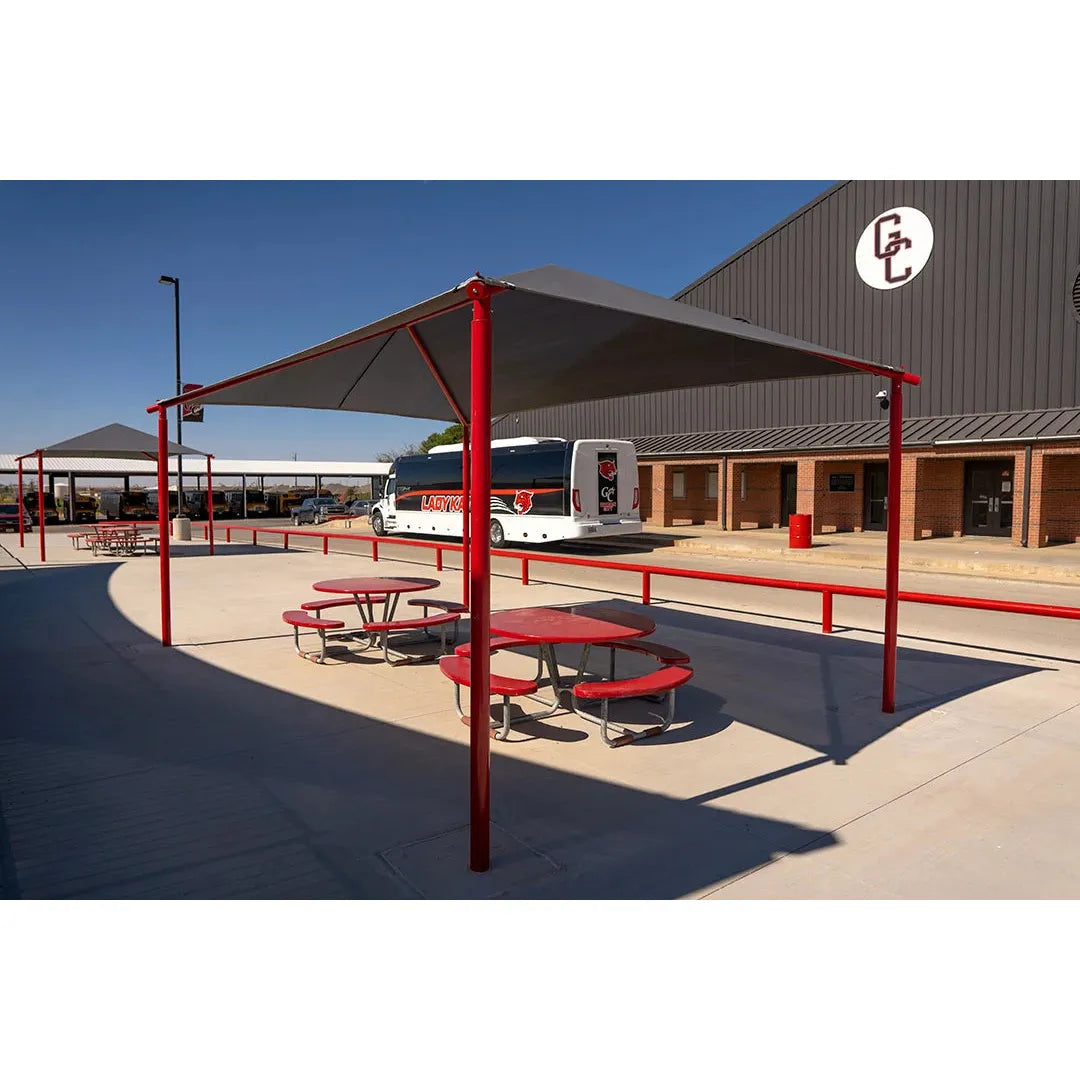

Cantilever and Hip Shade Structures

Cantilever vs Hip Shade Structures: Choosing the Right Configuration

Choosing between a cantilever shade structure and a hip (pyramid/hip roof) shade structure is one of the most important early decisions in a commercial shade project. Both can deliver excellent UV protection and long-term durability, but they solve different site problems. Cantilevers prioritize post-free usable space under the canopy, while hip structures prioritize balanced geometry, classic aesthetics, and predictable water shedding. This guide compares cantilever vs. hip shade structures for B2B and institutional buyers—so you can select the right configuration for safety, circulation, maintenance, and total cost of ownership.



Quick Definitions: What “Cantilever” and “Hip” Mean

Before you compare proposals, make sure everyone is using the same terms.

Cantilever shade structure (what it is)

A cantilever shade structure is engineered so the roof canopy projects out from posts that are positioned on one side (or pushed back) instead of in the middle of the covered footprint.

What this means in practice:

  • You get clear, post-free space where people sit, walk, or exercise.
  • The structure typically needs a stronger frame and larger foundations to resist overturning.

Hip / pyramid roof shade structure (what it is)

A hip (often pyramid) shade structure typically has posts that are distributed around the perimeter, supporting a roof that slopes down on multiple sides.

What this means in practice:

  • Loads are more evenly distributed through the posts and foundations.
  • Drainage and water shedding is often straightforward.
  • The look is a familiar “park pavilion” style many buyers prefer.

Want to see cantilever and hip options commonly used in institutional projects? Browse products in Outdoor Workout Supply’s XYZ category.

The #1 Question to Decide Configuration: Where Can Posts Go?

If you remember one decision rule, use this:

  • If posts cannot be inside the covered footprint, a cantilever is often the better starting point.
  • If posts can be placed at corners or perimeter points without disrupting the use case, a hip structure can be more straightforward.

Common “post conflict” reasons:

  • Bleacher footings, seat rows, or sightlines
  • Outdoor fitness equipment footprints and fall zones
  • ADA routes and turning clearances
  • High-traffic circulation paths
  • Seating layouts where posts create trip hazards or reduce capacity

For Outdoor Workout Supply customers in the XYZ category, post placement is especially important because outdoor fitness zones often require:

  • Clear group circulation
  • Equipment safety zones
  • Accessible travel paths through the training area



Cantilever vs. Hip: Side-by-Side Comparison for Commercial Buyers

Below is a procurement-friendly comparison of what typically changes when you choose one configuration over the other.

Usable space under the canopy

Cantilever:

  • Maximizes usable space because posts are set back or to one side.
  • Often preferred over bleachers, walkways, queues, and equipment areas.

Hip:

  • Posts are usually at corners/perimeter points. This is often fine for picnic areas and gathering spaces.
  • In tight footprints, corner posts can still interfere with circulation.

Structural efficiency and foundations

Cantilever:

  • Requires a stronger structure to handle cantilever forces.
  • Foundations may be larger or more reinforced.

Hip:

  • Loads are more evenly distributed.
  • Foundations may be more straightforward for comparable footprints.

Drainage, runoff, and water management

Cantilever:

  • Drainage can be excellent, but it must be planned carefully.
  • If the canopy sheds water toward walkways, gutters/downspouts may matter more.

Hip:

  • Hip/pyramid geometry often sheds water evenly.
  • Commonly a predictable choice for sites where runoff control is a priority.

Aesthetics and site fit

Cantilever:

  • Often looks modern and “purpose-built” for circulation and seating lines.
  • Great for athletic and recreation settings.

Hip:

  • Classic look, widely accepted in parks, campuses, and civic spaces.
  • Can align well with existing pavilions and site furnishings.

Cost considerations (how quotes differ)

Costs vary by design loads and site conditions, but a typical pattern is:

  • Cantilever structures can require heavier steel and larger foundations, which can increase cost.
  • Hip structures can be structurally efficient for many footprints, though customization and options can change that.

Important: The “cheaper” configuration depends on site-specific engineering, wind/snow loads, height, and foundation scope. Comparing only canopy size often misleads buyers.

If you share your footprint, site address, and whether posts can be placed inside the covered area, we can recommend a cantilever vs. hip approach and provide a budgetary range. Request a quote.

Best-Fit Applications: When Cantilever Usually Wins

Cantilever is often the best starting point when post-free coverage is the priority.

Common institutional applications:

  • Bleachers and spectator seating (posts behind seating rows)
  • Walkways and circulation routes (clear path travel)
  • Entry queues and drop-off zones (open movement)
  • Outdoor fitness and training areas (equipment zones and group flow)
  • Pool deck lounge coverage (fewer obstacles between loungers)

Buyer considerations:

  • Confirm site-specific wind criteria and the required foundation approach.
  • Plan for drainage so runoff does not create puddling or icing near circulation.



Best-Fit Applications: When Hip (Pyramid/Hip Roof) Usually Wins

Hip structures are often a strong choice when you want balanced coverage and posts can be placed at corners/perimeter points.

Common institutional applications:

  • Picnic and gathering areas (tables and benches)
  • Courtyards and seating nodes (predictable layouts)
  • Outdoor classrooms (defined footprint)
  • Playground-adjacent shade (posts placed outside fall zones)
  • Park pavilions and community spaces (classic look)

Buyer considerations:

  • Confirm post locations do not conflict with accessible routes.
  • Clarify whether gutters are needed based on the surrounding site surface.



Engineering and Code Considerations (Why Two Similar Quotes Can Differ)

Cantilever vs. hip is not just a layout choice. It changes engineering and compliance.

Design loads and site-specific criteria

Quotes should be based on your site’s:

  • Wind speed requirements
  • Snow load requirements
  • Seismic criteria where applicable

Cantilever designs can be more sensitive to overturning and uplift forces, so it is critical that quotes reflect the same design criteria when you compare proposals.

Foundations and soil conditions

Foundation scope may be:

  • Included
  • Excluded
  • Carried as an allowance

Regardless of configuration, clarify:

  • Who owns foundation engineering
  • Whether geotechnical information is required
  • How utility conflicts are handled

If you are comparing proposals and want to make sure cantilever and hip quotes are engineered to the same assumptions, contact us and we’ll help you identify what to normalize.

Buyer Considerations Beyond Structure Type (What Actually Drives Success)

Configuration matters, but institutional buyers typically succeed when these items are clear.

1) Site layout and circulation

Confirm:

  • ADA routes and turning clearances
  • Sightlines for supervision and security
  • Seating layouts and capacity goals
  • Equipment footprints and safety zones

2) Drainage and surface conditions

Decide early:

  • Where water will shed
  • Whether gutters/downspouts are needed
  • Whether surface materials (concrete, pavers, rubber surfacing) require special handling

3) Materials and finish package

Lifecycle performance depends on:

  • Galvanizing and powder coat specifications
  • Hardware selection for corrosive environments (pools, coastal, de-icing salts)
  • Fabric/membrane selection and warranty

4) Maintenance and replacement planning

Ask vendors:

  • Inspection cadence and maintenance recommendations
  • Fabric replacement process and lead times
  • Warranty terms for structure vs. finish vs. fabric

If you are narrowing configurations and want to see what options exist for finishes, fabrics, and accessories, browse products in our XYZ category.

A Simple Decision Framework (Use This in Stakeholder Meetings)

Use these questions to decide quickly:

  1. Do we need post-free coverage under most of the footprint?
    • If yes, start with cantilever.
    • If no, hip may be simpler.
  2. Are there tight constraints around ADA routes, equipment zones, and seating layouts?
    • If constraints are high, cantilever often reduces compromises.
  3. Is the site sensitive to runoff and drainage?
    • Hip/pyramid geometry is often predictable for drainage.
    • Cantilevers can still drain well, but need more deliberate planning.
  4. Is the priority a classic park pavilion look?
    • Hip is often preferred.
  5. Is the priority a modern, function-first solution over circulation or seating lines?
    • Cantilever is often preferred.

Share your site plan (or a simple sketch), and we’ll recommend whether cantilever or hip is the better fit for your constraints and budget range. Request a quote.

FAQ: Cantilever vs. Hip Shade Structures

1) Is a cantilever shade structure more expensive than a hip shade structure?

Not always, but cantilevers often require heavier structure and foundations. The true cost depends on design loads, height, spans, and site conditions.

2) Which configuration is better for bleachers?

Cantilever is commonly preferred because it keeps posts behind seating and preserves sightlines and circulation.

3) Which configuration is better for picnic areas?

Hip structures are often a strong choice because posts can sit at perimeter points and the roof geometry provides balanced coverage.

4) Which configuration is better for outdoor fitness zones?

Often cantilever, because post-free coverage helps preserve equipment layouts, fall zones, and group circulation. However, a hip structure can work if posts can be placed outside critical zones.

5) How do wind and snow loads affect the cantilever vs. hip decision?

Higher design loads can increase steel sizes and foundation scope for either configuration. Cantilever designs can be more sensitive to uplift and overturning, so engineering assumptions must be consistent across quotes.

6) Do both configurations require permits?

Many institutional shade structures require permits and engineered drawings. Requirements vary by jurisdiction.

7) Can either configuration include gutters and lighting?

Yes. Accessories should be decided early so engineering and fabrication reflect the final scope.

8) How do we compare quotes fairly between cantilever and hip options?

Normalize the design criteria (wind/snow), footprint, clearance height, foundation scope, finish package, and included documentation.

9) Which one is easier to maintain?

Both can be low-maintenance when specified correctly. Maintenance depends more on finish system, hardware selection, and fabric/membrane replacement planning than on configuration alone.

10) What information do vendors need to recommend the right configuration?

Site address, desired footprint, clearance heights, post constraints, adjacent use (bleachers, walkways, equipment), and any options like drainage or lighting.

Choose the Configuration That Protects Usability and Reduces Compromises

Cantilever and hip shade structures both serve institutional sites well, but they optimize for different constraints. If your project needs clear post-free space over circulation, seating lines, or equipment, cantilever is often the best path. If your site can accommodate perimeter posts and you want balanced coverage with classic aesthetics, a hip structure may be ideal. Either way, the best results come from aligning configuration with site constraints early and ensuring proposals are engineered to the same assumptions.
