Commercial Bike Parking: A Buying Guide for Facilities

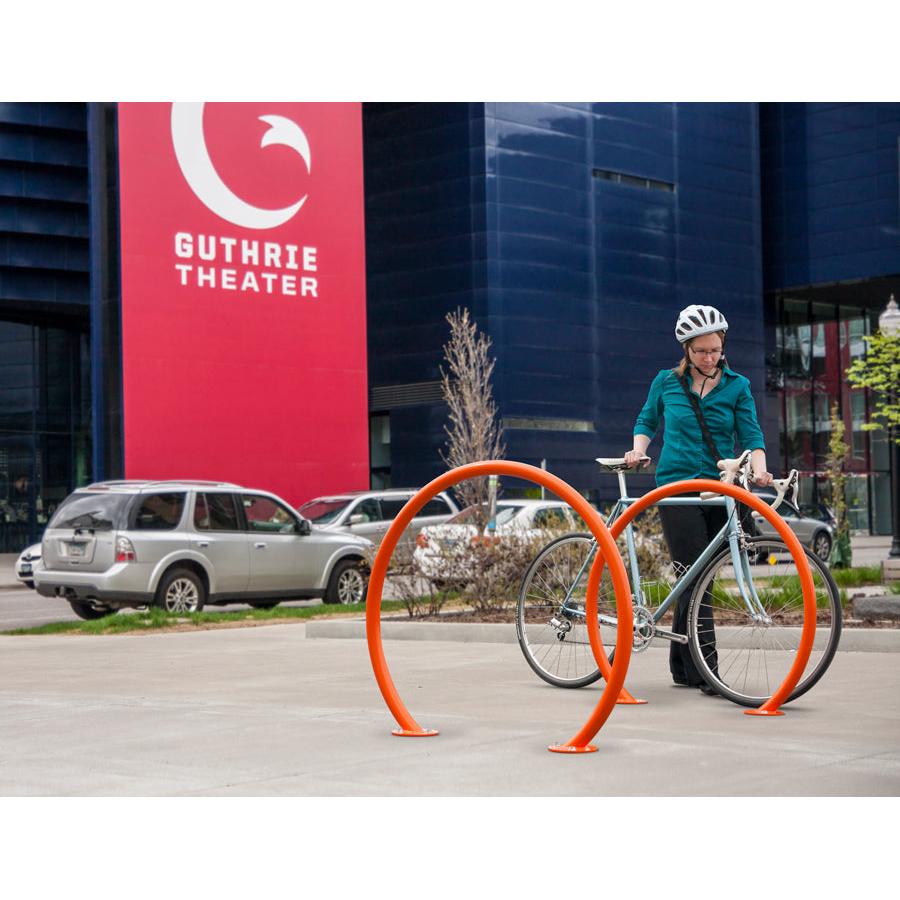

Short answer: a working commercial bike-parking plan starts from three numbers — how many bikes at peak, how much of that is short-term versus all-day, and how much site width you actually have — and only then picks a rack style. Hoop and inverted-U racks (sold under names like Round Rack, Bike Hitch, Swerve Rack) are the default for general-purpose commercial parking: they support the bike frame at two points, work with any lock type, and are the lowest-cost way to add capacity. Vertical space-savers and double-decker racks trade a longer approach and load time for typically around double the capacity per foot of wall or floor, depending on the specific model's tier geometry. Shelters and lockers add weather protection or theft resistance and cost proportionally more per bike parked. Every layout also has to clear an accessible route and, in many jurisdictions, a local bike-parking code — check both before you finalize a count.

How many bike-parking spaces do you actually need?

Start from a peak-demand count, not a guess. For most institutional sites that means counting the peak simultaneous bike arrivals over a normal week (a school drop-off window, a campus class-change hour, a park's busiest weekend afternoon), not total daily riders — most of those bikes are not parked at the same time. A site with a strong existing bike commute or a nearby bike-share dock tends to need more short-term, high-turnover capacity (hoop racks near the main entrance); a workplace or apartment site with the same riders every day tends to need more long-term, higher-security capacity (shelters, lockers, or vertical racks) further from the door. Building in headroom matters more here than in most site-furniture decisions — bike parking is one of the cheaper things to over-provision and one of the more disruptive things to retrofit once pavement or landscaping is in.

What rack styles are available, and what do they trade off?

Every commercial rack style is a tradeoff between footprint, cost per bike, security, and how quickly someone can park and leave. The table below lines up the styles OWS carries against those four questions.

Prices shown are current as of August 2026 — check the linked product pages in the table above for today’s pricing, or browse the live bike-rack collection and request a quote.

What spacing does a bike-parking layout need?

Enough for a bike to be locked, and enough for the next person to lock theirs without lifting a wheel over your handlebars. Manufacturers and municipal siting guides commonly recommend roughly 30-36 inches between the centerlines of adjacent hoop or U-racks, and a clear aisle of about 4 feet (48 inches) behind a row of racks so a bike can be walked in and out without blocking the row behind it — treat these as planning ranges, not fixed numbers, and confirm the exact figure against your chosen rack's own install sheet, since spacing tolerances vary by rack design and by whether racks face one direction or alternate. (The Association of Pedestrian and Bicycle Professionals — APBP — publishes the standing practitioner references on bicycle-parking siting if your project needs a formal basis.) A bike itself can span roughly 6 to 7 feet tire-to-tire, so the real space budget is the rack footprint plus that full bike length plus the aisle behind it — a common planning mistake is sizing a layout to the rack's own footprint and forgetting the bike has to fit too.

How secure is a bike rack, really?

Security is mostly a property of the rack's shape, not its price. A rack that supports the bike frame at two points — a hoop, an inverted-U, a wave, or a campus grid — lets a rider run a single U-lock through the frame and a wheel, which is the strongest common lock configuration. A rack that only supports the front wheel (the classic "wheel-bender" comb-style rack, which OWS does not carry) lets a thief remove the whole bike by the frame while the wheel stays locked — it is the one style buyers should actively avoid regardless of price. Lockers add a second, independent security layer (an enclosure, not just a lock point) and are the right answer for overnight or long-duration parking in areas without staff presence.

Surface-mount or in-ground — which do you need?

In-ground (embedded) mounting sets the rack's legs into a drilled and grouted footing — it is the more rigid, more vandal-resistant option and is usually the lower-cost variant for a given rack, since it needs less steel at the base. It requires wet concrete work and a cure period before the rack is usable, which matters for a construction schedule. Surface mounting bolts the rack to existing concrete or pavers and needs no excavation — faster to install, removable if a site layout ever changes, and typically the higher-cost variant of the same rack (for example, OWS's Swerve Rack runs $399 in-ground versus $405 surface-mount, and the Downtown Rack $325 in-ground versus $399 surface-mount — prices as of August 2026). Surface mount is the practical choice on a site where the concrete is already poured and you don't want to cut it; in-ground is the practical choice on new construction or a full site redo, where the footing is being poured anyway. In practice, most of our commercial orders go surface-mount — schools, municipalities and private sites alike — simply because the concrete is usually already there.

Does ADA or a local code affect where you can put a bike rack?

Two separate questions, and both matter. First, accessibility: federal accessible-route guidance requires a continuous clear width of at least 36 inches along any accessible route on your site (32 inches minimum at a short constriction), so a rack bank — including the bikes parked in it and their handlebars — has to sit clear of that path rather than narrowing it. A rack placed so a parked bike's wheel or pedal projects into the route is a common, easy-to-miss violation. Second, local code: many cities and campuses set their own minimum bike-parking counts and siting rules in the zoning or building code, tied to a building's use and square footage, the same way car parking minimums work — this varies by jurisdiction and isn't something a single article can catalog, so check your local planning or facilities department before finalizing a count or a location, not after the racks are ordered.

What actually drives the installed cost of bike parking?

The rack itself is only part of the number. The line items that move an installed quote up or down: mount type (in-ground needs concrete work and a cure period; surface-mount needs a solid existing pad); site prep (new pavement or a poured pad if none exists); freight (racks and especially shelters ship heavy); quantity (per-unit cost drops with volume on most rack styles, and shelters/lockers are typically quoted per project rather than per unit); and, for a shelter, any electrical run for lighting. In our own quoting experience, installation and site work together commonly run roughly a third to half of the total delivered cost on a typical commercial order — a bank of racks or a single shelter. Get an installed number, not a hardware-only number, before you finalize a budget — the hardware price alone will under-represent the real cost of a shelter or a locker bank in particular.

Parts of this article were drafted with AI assistance; every factual claim was sourced, checked, and edited by our team before publication.
