How to Size a Shade Structure: Coverage Calculations for Playgrounds and Common Areas
Sizing a shade structure is one of the most misunderstood steps in commercial shade projects. Buyers often start with a canopy dimension (for example, “20' x 20'”) and only later discover that the shadow moves, the high-use area is only partially covered during peak hours, or the posts land in exactly the wrong place for fall zones and circulation.
The good news is that shade sizing can be approached like a practical coverage problem. With a few inputs—priority zones, peak-use hours, desired clearance, and basic sun-angle awareness—you can estimate required canopy size, choose the right structure type, and avoid expensive redesigns.
This guide explains how to size shade for playgrounds and common areas in a way that aligns with real-world use and institutional procurement.
Contact us: If you want help sizing shade using your site plan, contact us and share your location, priority zones, and desired clearance height.
Why Shade “Square Footage” Is Not the Same as Usable Coverage
Shade is a moving target.
- The canopy has a fixed size.
- The shadow changes by hour and season.
- People use only specific parts of a site (benches, play events, queue lines), not the entire footprint evenly.
A well-sized shade structure delivers usable shade during peak-use windows over the zones where people actually spend time.
Step 1: Identify the Priority Zones (What Must Be Shaded)
Start by marking the areas that drive comfort and operations.
Playground priority zones
- High-touch play events (slides, climbing entries, transfer platforms)
- Toddler and inclusive areas (high dwell time)
- Caregiver seating with clear sight lines
- Entry gates, staging, and queue lines
Common area priority zones
- Outdoor dining tables and café seating
- Courtyard seating clusters
- Outdoor classroom or program circle areas
- Bleachers and spectator seating
- Walking-loop rest nodes
Sizing tip: If you can only shade one area first, shade high-dwell seating and supervision points before trying to shade every square foot of equipment.
Step 2: Define the Performance Window (When Shade Is Needed)
The same canopy can perform very differently at different times.
Ask:
- What hours is the site busiest? (Example: 10 a.m.–2 p.m.)
- Is this a school recess site (midday) or a public park (afternoons and weekends)?
- Is summer performance the primary driver, or do you need shoulder-season comfort too?
Practical rule: Size for the hours that matter most. Shade coverage at 9 a.m. does not help if your peak use is at 1 p.m.
Step 3: Estimate Shadow Length (A Simple Coverage Calculation)
You do not need advanced software to estimate sizing direction. A basic shadow model gets you close.
The core relationship
A shadow length depends on canopy height and the sun’s elevation angle.
- Higher sun angle (midday summer): shorter shadow
- Lower sun angle (morning, late afternoon, shoulder seasons): longer shadow
A practical sizing method (field-friendly)
- Start with your desired clearance height (for example, 10–14 ft depending on use).
- Assume your most important time is midday for summer performance.
- Plan extra coverage on edges to account for moving shadows.
Because sites vary by latitude and season, the most reliable process is to validate with a simple shadow study or vendor layout based on your location.
What to do instead of guessing
- Use an aerial or site plan and ask for a coverage overlay showing shadow at peak hours.
- Compare two canopy sizes and see which actually shades the priority zone.
Request a quote: Want a coverage overlay for your site? Request a quote with your project address and a plan view (or aerial with dimensions).
Step 4: Translate Coverage Need into Canopy Size (Playgrounds vs Common Areas)
A) Playgrounds: size for fall zones and high-touch events
Playground shade sizing must account for:
- Fall zones and surfacing boundaries
- Post placement constraints
- The fact that children move across multiple events
Sizing approach:
- Shade the core play event and the supervision seating zone first.
- If the playground is large, use multi-bay coverage (multiple connected modules) instead of one oversized canopy that forces posts into bad locations.
B) Common areas: size for seating geometry and dwell time
For courtyards and dining:
- Shade should cover where chairs and tables are placed, not just the walkway.
- Edge coverage matters because people avoid seats at the “sun edge.”
Sizing approach:
- Create a shade footprint that fully covers the seating cluster during peak use.
- Consider a combination of large canopy + smaller targeted shades for transitions.
Step 5: Choose the Structure Type That Makes Your Size Buildable
Sizing is not only a math problem. Structure type determines whether posts and foundations can actually go where the plan requires.

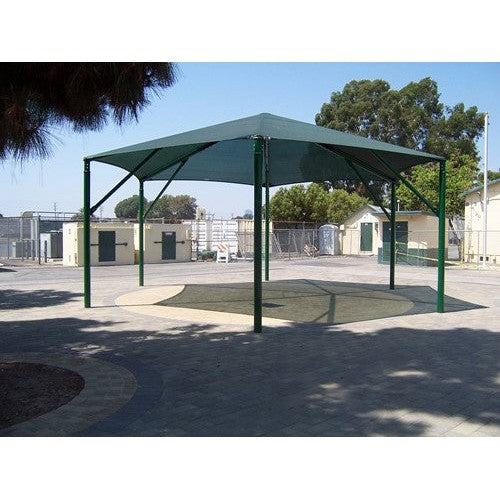

1) Multi-post hip and pyramid canopies
Best for:
- Broad, efficient coverage
- Repeatable footprints
Sizing strengths:
- Easy to scale up using standard footprints
- Multi-bay modules can cover larger zones predictably
Buyer considerations:
- Confirm post locations do not conflict with fall zones or seating layouts.
2) Cantilever shade structures (perimeter-post designs)
Best for:
- Shading large areas while keeping the interior clearer
Sizing strengths:
- Can shade priority zones without interior posts
Buyer considerations:
- Larger perimeter footings are common due to offset loads.
- Confirm edge-of-shade performance during peak hours.
3) Commercial shade sails (engineered systems)
Best for:
- Irregular footprints
- Layered shade fields
Sizing strengths:
- Flexible geometry can “target” hot zones
Buyer considerations:
- Engineering and anchors must match wind exposure.
- Maintenance includes tension checks.
4) Rigid-roof and pergola-style structures
Best for:
- Dining, entry, and event areas where architectural integration matters
Sizing strengths:
- Defined footprint and potential rain behavior control
Buyer considerations:
- Drainage and uplift design must be engineered.
Browse products: To compare structure types and how they scale to larger footprints, browse products from Outdoor Workout Supply.
Step 6: Plan for Real-World Layout Details (The “Hidden” Sizing Factors)
1) Overhang and edge performance
People feel the difference between:
- “Technically shaded” edges
- Comfortable shade where sun does not hit seating or touch points
Plan extra coverage at edges for peak-use times.
2) Clearance height vs shade density
Higher clearance can improve openness and airflow, but it can also shift shade.
Your goal is to maintain coverage where it matters while meeting clearance needs.
3) Seating placement and behavior
If seats are placed at the edge, users will migrate.
- Place seating deeper under the canopy.
- Provide multiple shaded nodes to distribute use.
4) Surrounding heat sources
Asphalt and concrete nearby can add radiant heat.
- Consider shading adjacent paths and staging zones, not only equipment.
Buyer Considerations: How to Size Shade That Permits and Performs
1) Engineering criteria (wind, snow, exposure)
Bigger canopies can mean bigger loads.
- Confirm design wind speed and exposure category.
- Confirm snow load criteria where applicable.
2) Foundations and constructability
- Larger or taller structures may require larger footings.
- Cantilever systems may require larger perimeter footings.
- Utility conflicts can drive layout changes late if not identified early.
3) Phasing strategy
If budget is limited:
- Phase 1: caregiver seating and high-dwell zones
- Phase 2: main play event or dining cluster
- Phase 3: transitions and secondary nodes
Contact us: If you need help sizing shade while avoiding fall zones, utilities, and ADA conflicts, contact us and we will help you evaluate layout options.
FAQ: Sizing Shade Structures for Playgrounds and Common Areas
1) What is the most common sizing mistake buyers make?
Choosing a canopy size based on square footage alone, without checking whether the shadow covers the priority zone during peak-use hours.
2) How do we estimate how much area will actually be shaded?
Start with a plan view and request a shadow overlay at peak hours for your location. The same canopy can shade very differently by season and time of day.
3) Should we size shade to cover the entire playground?
Not always. Many projects deliver the best ROI by shading high-dwell seating and the core play event first, then expanding coverage with additional modules over time.
4) How does canopy height affect sizing?
Height changes the shade footprint and how the shadow moves. Higher canopies can improve openness and airflow, but coverage may shift more. The right height balances clearance needs and peak-hour shade.
5) Is it better to use one large canopy or multiple smaller canopies?
Often multiple modules provide better coverage flexibility, easier post placement, and simpler phasing. A single large canopy can be effective when the site supports the post and foundation layout.
6) How do we size shade when we cannot place posts in the interior?
Consider cantilever structures or perimeter-post layouts, and use modular multi-bay designs to keep posts out of fall zones and circulation paths.
7) How do we size shade for seating and dining areas?
Shade should cover the seating footprint during peak-use hours, not just a walkway edge. Plan extra coverage at edges to prevent “sun edge” discomfort.
8) Do shade sails require different sizing considerations?
Yes. Sail geometry, height differences, and tensioning affect coverage. Engineering and anchors must match the site’s wind exposure, and maintenance should include tension checks.
9) What information do you need to provide a sizing recommendation?
Project location, a site plan or aerial with dimensions, priority zones, desired clearance height, and constraints like utilities, fall zones, and ADA routes.
10) How do we keep sizing changes from becoming change orders?
Confirm constraints early, require a coverage overlay during design, and align engineering criteria before foundations are scoped.
Size Shade for the Shadow, Not the Canopy
The right shade structure size is the one that produces usable shade over priority zones during peak-use hours. Start with the outcome, map the constraints, validate shadow coverage, then choose a structure type that makes the layout buildable.
