Playground Surfacing Thickness Guide: Matching Depth to Equipment Height
Playground surfacing “depth” is one of the most important safety variables on a play site, and it is also one of the easiest to get wrong in procurement. If surfacing is too thin (unitary systems) or too shallow (loose fill), fall protection can drop below what the equipment requires. If it is overbuilt everywhere, budgets get burned and owners still may not address the real failure points: high-wear zones, drainage, and maintenance.
This thickness guide explains how to match surfacing depth to equipment height in practical terms for commercial and institutional buyers. It covers the difference between maximum fall height and critical fall height, how thickness works across common surfacing types, and what to include in your bid package so contractors price the same build-up.
Contact us to review your equipment list and help you match surfacing thickness/depth to fall height requirements and real maintenance capacity.
The two terms that control surfacing thickness: maximum fall height vs. critical fall height
Most thickness confusion comes from mixing up equipment requirements and surfacing test results.
Maximum fall height (equipment)
Maximum fall height is the highest point a child can access on the equipment from which a fall could occur. It comes from manufacturer cut sheets and the equipment layout.
Critical fall height (surfacing)
Critical fall height is the tested performance of a specific surfacing system build-up (at a specific thickness or depth) under impact attenuation testing.
The practical rule: In each fall zone, the surfacing build-up should be specified so the system’s critical fall height meets or exceeds the equipment’s maximum fall height.
Common mistake: specifying “rubber” or “mulch” without tying it to thickness/depth and fall height.
Why thickness is not “one number” across an entire playground
Playgrounds have multiple risk and traffic zones. A single thickness everywhere is rarely the best value.
Most sites include:
- Different equipment heights (toddler zone vs school-age zone)
- Different use patterns (swings and slide exits wear faster)
- Different route requirements (accessible paths and entries)
A smarter approach is to specify thickness and depth by zone, not as a single blanket number.
Request a quote with a zone-based scope so thickness/depth can be priced accurately where it matters most.
Step 1: Gather the inputs you need (before you spec thickness)
To match thickness to equipment height, you need three inputs.
1) Equipment list + cut sheets
These provide maximum fall heights and layout requirements.
2) A plan showing fall zones
Fall zones define where impact attenuation must be maintained.
3) The surfacing system type and build assumptions
Examples:
- Poured-in-place rubber over concrete or asphalt
- Rubber tiles over concrete or asphalt
- Engineered wood fiber over engineered aggregate base
Buyer takeaway: Without base assumptions, thickness alone does not guarantee performance.
Step 2: Understand how thickness works by surfacing type
Thickness and depth behave differently depending on whether the system is unitary or loose fill.
Unitary surfacing (thickness)
Unitary surfaces are continuous systems (poured rubber, tiles, some engineered turf systems).
How thickness works:
- Thickness is built into the system design (often layered).
- Consistency is critical. Thin spots can reduce performance in fall zones.
Common unitary categories:
- Poured-in-place (PIP) rubber
- Rubber tiles
- Turf + shock pad (when engineered for fall zones)
Loose-fill surfacing (installed depth)
Loose fill is placed at a depth and changes over time.
How depth works:
- Installed depth must be sufficient to meet performance needs.
- Depth decreases over time due to displacement and compaction.
- Maintenance is part of “keeping the depth.”
Common loose-fill categories:
- Engineered wood fiber (EWF)
- Rubber mulch (loose fill)
Thickness guidance by system: what buyers should know (and what to specify)
Instead of listing universal “inch-by-fall-height” tables (which vary by system and testing), this section focuses on what you can specify reliably in procurement.
1) Poured-in-place (PIP) rubber
PIP is typically a two-layer system:
- Cushion layer provides most impact attenuation
- Wear layer provides durability and color
What to specify:
- Thickness by zone tied to maximum fall height
- Whether thickness varies across different equipment areas
- Wear layer material (often EPDM/TPV) if aesthetics and UV stability matter
- Base type and slope requirements
What to require:
- Thickness verification during installation
- High-wear zone strategy (swings, slide exits)
Where it fits best:
- Inclusive and high-use playgrounds
- Sites with limited loose-fill maintenance capacity

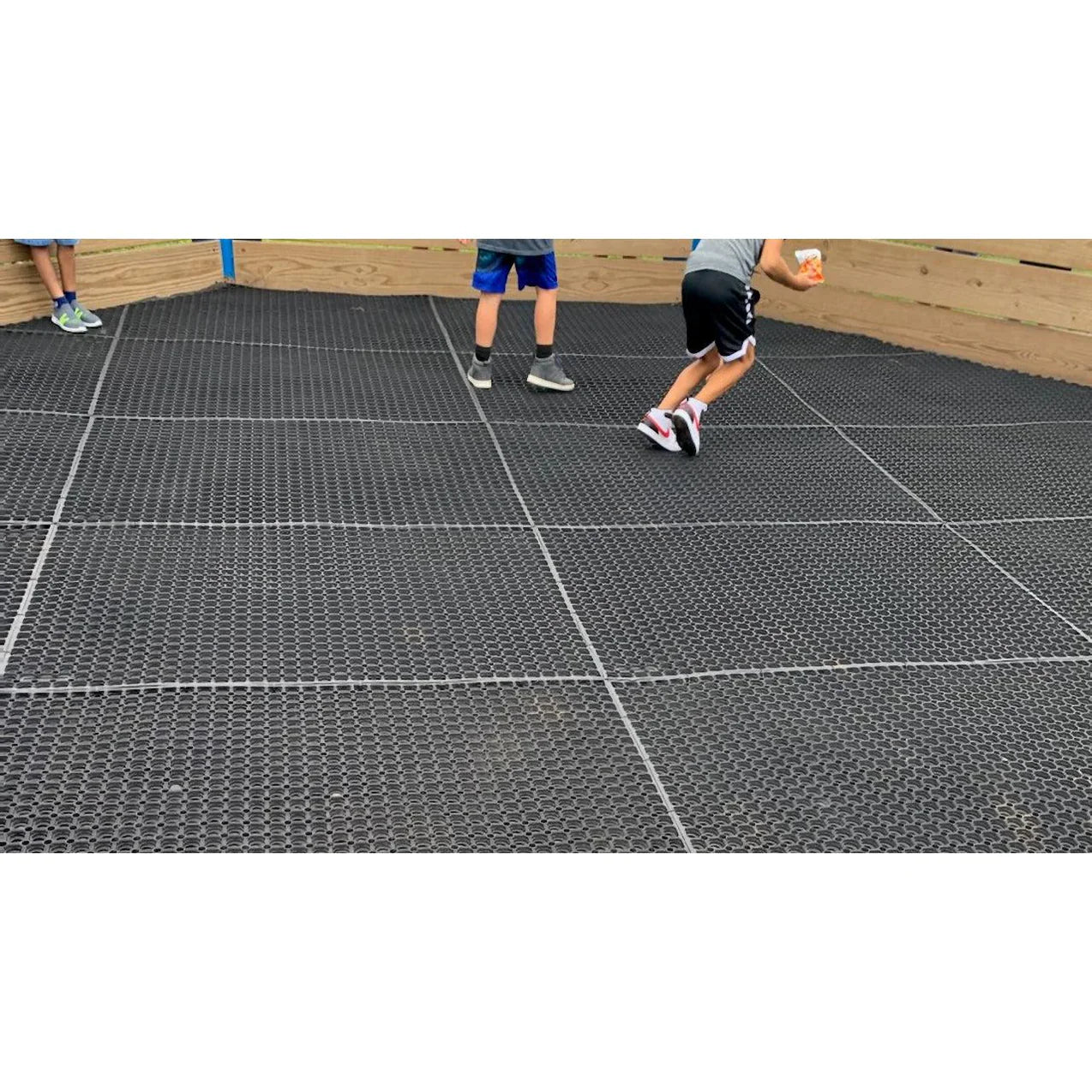

2) Rubber tiles
Tile systems are thickness-dependent for fall height performance.
What to specify:
- Tile thickness and system build-up by zone
- Substrate requirements (stable, properly sloped base)
- Edge and seam detailing requirements
What to require:
- Proof that the proposed tile build meets the required fall height
- Repair plan and response time for seam/edge issues
Where it fits best:
- Smaller playgrounds
- Sites that want modular replacement potential
3) Engineered wood fiber (EWF)
EWF can meet impact attenuation needs at the right depth, but depth must be maintained.
What to specify:
- Installed depth by zone tied to fall height requirements
- Containment and entry pad details
- Base build assumptions (engineered aggregate, drainage path)
What to require:
- Depth verification at installation
- Maintenance plan: raking frequency, depth checks, annual top-offs
Where it fits best:
- Budget-driven parks and schools with consistent maintenance routines
4) Rubber mulch (loose fill or bonded)
Rubber mulch loose fill behaves like other loose fill: depth + maintenance.
What to specify:
- Installed depth by zone
- Containment and entry pad details to reduce kick-out
- Maintenance requirements
Bonded rubber mulch behaves more like unitary surfacing and should be treated as thickness + base prep dependent.
5) Turf + shock pad (engineered fall systems)
If turf is used for fall zones, impact attenuation is driven by shock pad selection and thickness.
What to specify:
- Shock pad type and thickness by zone
- Drainage design and base assumptions
- Cleaning and debris management expectations
Browse products to compare surfacing systems and understand which ones can be engineered to meet your fall height needs.
Step 3: Treat swings and slide exits as separate thickness problems
Even a perfectly specified fall zone can fail first under swings and at slide exits.
Why:
- Concentrated foot braking and scuffing
- Displacement (loose fill)
- Abrasion and raveling (unitary)
- Water collection in low spots
What to do:
- Define swing bays and slide exits as high-wear zones in the plan
- Require a reinforcement or repair strategy
- Require drainage checks (test rinse) before acceptance
Step 4: Build thickness into your bid package (so proposals are comparable)
If you want apples-to-apples bids, “meets safety standards” is not enough. Your bid package should force clarity.
Include:
1) Zone-based thickness/depth schedule
- Fall zones by equipment area
- Thickness/depth requirements for each zone
2) Base assumptions and responsibilities
- Concrete/asphalt/aggregate base
- Slope targets
- Who owns grading corrections
3) Verification requirements
- How thickness/depth will be measured
- Frequency of spot checks
- As-built documentation
4) Drainage acceptance
- A test rinse requirement
- “No standing water” criteria (define the time window)
5) Maintenance and lifecycle plan
- Loose-fill: raking, depth checks, top-offs
- Unitary: cleaning, inspections, high-wear repairs
Contact us to help you convert your equipment heights and site plan into a bid-ready thickness/depth schedule by zone.
Buyer considerations: common thickness mistakes (and how to avoid them)
Mistake 1: One thickness everywhere
Fix: Specify by zone based on fall height and traffic.
Mistake 2: No thickness verification
Fix: Require thickness/depth documentation as a closeout deliverable.
Mistake 3: Ignoring drainage
Fix: Require slope targets, base assumptions, and an acceptance test.
Mistake 4: Assuming loose fill stays at installed depth
Fix: Budget for ongoing maintenance and top-offs.
Mistake 5: Not planning for high-wear zones
Fix: Identify swing bays and slide exits as planned high-wear zones.
FAQ: playground surfacing thickness and depth
1) How do I determine the right surfacing thickness for my playground?
Start with maximum fall heights from equipment cut sheets, map fall zones, then specify thickness/depth by zone using the surfacing system’s tested performance documentation.
2) Is thicker always safer?
Not always. Thickness helps impact attenuation, but system design, installation consistency, base prep, and maintenance determine real-world performance.
3) How often should loose-fill depth be checked?
High-use zones should be checked regularly. Swings and slide exits typically need more frequent checks than other areas.
4) Can we mix surfacing types across one playground?
Yes. Many facilities use unitary surfacing for accessible routes and high-wear zones and loose fill for larger fall zones to control cost.
5) What is the biggest reason surfacing fails inspections?
Inconsistent thickness/depth in fall zones, drainage issues, and lack of maintenance in high-wear areas.
6) Do poured rubber systems need thickness verification?
Yes. Thin spots can reduce impact attenuation performance. Require a verification plan and documentation during installation.
7) What’s the most important area to reinforce?
Swing bays and slide exits are the most common early failure points. Plan for them explicitly.
8) What information is needed for accurate quotes?
Plan set, square footage by zone, equipment list with maximum fall heights, base/substrate condition, location/climate, and maintenance expectations.
9) How do we prevent overbuilding the whole site?
Use a zone-based approach: build to the highest fall heights where needed, and specify cost-effective build-ups where risks and traffic are lower.
Next steps
The safest and best-value playground surfacing thickness plans are zone-based. When you match depth and thickness to equipment fall height, verify installation, and plan for high-wear zones and drainage, you get better safety outcomes and longer surface life.
