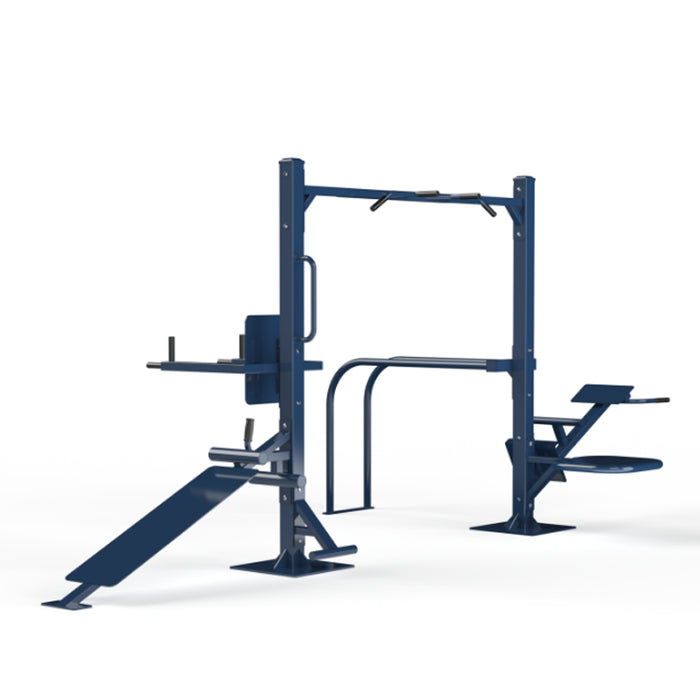

TriActive USA Eight-person Modular Series
TriActive USA Fitness Equipment
Manufactured in the USA - Built for commercial use in Parks, Schools as well as Correctional Facilities
REQUEST A QUOTE
INSTALLATION SERVICES
PRODUCT DESCRIPTION
Further developing our Modular Series unit, we would like to introduce version 2 of the Modular Series, a multi station unit combining several exercises into one small footprint.
The MODU2 accommodates a minimum of 7 users simultaneously with stations including – a pull up station with varying levels of difficulty, a dip and knee raise station focusing on tricep and core strengthening, a back extension, a plyo box, an inclined sit up board, a sit up station, and Parallel Bars.
Our most innovative design set out to create a complete body workout no matter the environment or weather conditions.
Specifications
This equipment is designed for individuals weighing up to 330 lbs.
- Dimensions: 210”L X 98”W X 92”H
- Color: Green or Blue
- Weight: 895 LBS
- Assembly: Required
Warranty
-
Limited 10-year warranty on steel posts, welds, bars and other steel parts on all units that are fully welded, with non-moving parts.
-
Limited 5-year warranty on steel posts, welds, bars and other steel parts for all units with moving parts.
Product Specifications
TriActive USA’s Modular Series 2 assumes usage of American standard size tubing, namely:
- 4” x 4” square tubing x 11ga
- 1-1/2” x 3” rectangular tubing x 11ga
- 1-1/2” Sch. 40 pipe
- 1-1/4” OD round tubing x 11ga
- 1-1/2” x 1-1/2” square tubing x 16ga
- ¼” hot rolled flat bar
- 11ga carbon steel sheet metal
TriActive USA Fitness Equipment does not include any of the following:
- Exposed cables
- Hydraulics
- Plastic seating.
Powder Coating Specifications
- Powder coating thickness 6-8 mils.
- Coatings are tested for 1000 hours of salt spray resistance.
- Pretreated
- Iron phosphate applied
- Zinc powder applied
- Functional powder applied
- Final TGIC powder coat is applied to provide outstanding weathering capabilities.
Product Downloads
* Actual equipment may look different than shown due to frequent design upgrades.*
PRODUCT FEATURES
ANCHOR DETAILS
This equipment must be surface mounted onto concrete.
PRODUCT SPECS
INSTALLATION RESOURCES
TRIACTIVE VIDEO OVERVIEW
TriActive Equipment Video Overview - HERE
FREIGHT CONSIDERATIONS
Our TriActive Equipment ships via LTL freight with liftgate service to ensure safe and convenient delivery. This method accommodates the size and weight of the equipment, providing a hassle-free drop-off directly to your location. Please ensure adequate space and access for delivery.
WARRANTY
Limited 10-year warranty on steel posts, welds, bars and other steel parts on all units that are fully welded, with non-moving parts.
Limited 5-year warranty on steel posts, welds, bars and other steel parts for all units with moving parts.
