TriActive USA Tri-Level Horizontal Bar

TriActive USA Tri-Level Horizontal Bar

by TriActive USA
$2,999.00 - $2,999.00
$2,999.00
$2,999.00 - $2,999.00
$2,999.00

TriActive USA Fitness Equipment

Manufactured in the USA - Built for commercial use in Parks, Schools as well as Correctional Facilities

REQUEST A QUOTE

1) Add products and accessories to your Quote via the Add to Cart / Quote button above

2) You'll see the option to 'Review your Cart / Request Quote'. You can either proceed with your Quote Request from there or continue adding to your request

3) Once you've added all items to your cart, click the 'View Cart / Request Quote' button or select the cart icon in the upper right-hand corner of the screen

4) From your cart, you'll be able to formally request a quote via the blue 'Request Quote' button on the left-hand side below the listed products

Need help?

Call Us: (888) 990-7508

Email Us: Sales@outdoorworkoutsupply.com

INSTALLATION SERVICES

Our dedicated team simplifies the entire process—from helping you select the ideal equipment for your needs to a seamless, professional installation.

See photos of some of our installations - HERE

We pride ourselves on attention to detail and reliability, ensuring your equipment is installed correctly, safely, and promptly. Trust us to handle your project and enjoy your new equipment without hassle or delay.

Contact us for Quotes and Additional Details!

Phone - (888) 990-7508

Email - Sales@outdoorworkoutsupply.com

PRODUCT DESCRIPTION

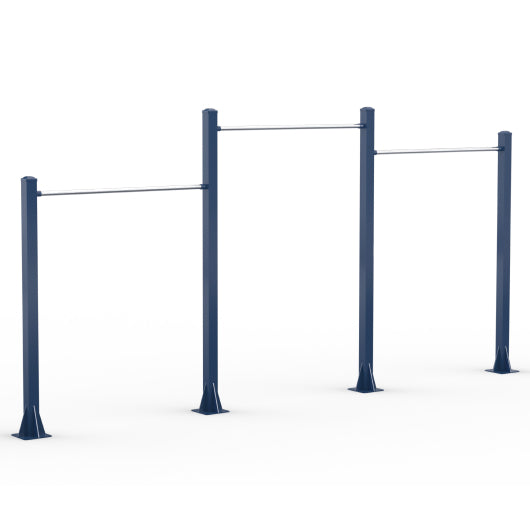

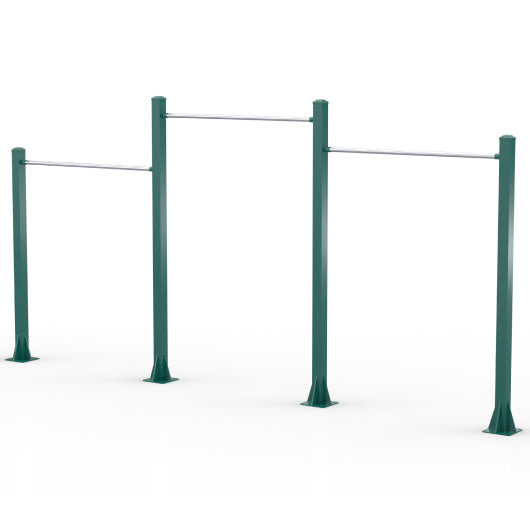

The Tri-Level Horizontal Bar offers the classic pull up bar, but designed to accommodate 3 different users heights simultaneously. Horizontal Bars or pull up bars are excellent for pull ups, maximizing upper body strength building, knee raises for a focused core exercise, and can be used to “hang in place” further strengthening shoulders, biceps, hand grips, and back muscles. This unit can be customized to accommodate specific user heights – single, double, and triple horizontal bars are available upon request.

Specifications

This equipment is designed for individuals weighing up to 330 lbs.
  • Dimensions: 177”L X 8”W X 88”H
  • Bar Heights: 5FT, 6FT & 7FT
  • Color: Green or Blue
  • Weight: 215lbs
  • Assembly: NOT REQUIRED

    Warranty

    Limited 10-year warranty on steel posts, welds, bars and other steel parts on all units that are fully welded, with no moving parts.

    Product Specification

    TriActive USA’s HBAR3 assumes three cross bars (5, 6, and 7 feet off ground on center) and four upright posts utilizing a slip fit tube that’s welded inside the cross bars and drilling holes for 3/8” bolts to secure the cross bars in place.

    HBAR3 assumes usage of American standard size tubing, namely:

    • 3” x 3” square tubing x 11ga
    • 1-1/4” OD round tubing x 11ga
    • 1.5” Round Tube 11ga
    • ¼” hot rolled flat bar.

    The part will have seven parts in total – 4 uprights and 3 cross bars.

    TriActive USA Fitness Equipment does not include any of the following:

    • Exposed cables
    • Hydraulics
    • Plastic seating

    Powder Coating Specification

    • Powder coating thickness 6-8 mils. Coatings are tested for 1000 hours of salt spray resistance.
    • Pre-treated
    • Iron phosphate applied
    • Zinc powder applied
    • Functional powder applied
    • Final TGIC powder coat is applied to provide outstanding weathering capabilities.

    Product Downloads

    Product Specs

    Installation Sheet



    *Actual Equipment may look different that shown due to design upgrades.*

    PRODUCT FEATURES
    • Product #: HBAR3
    • Dimensions: 177”L X 8”W X 88”H (when bars are positioned in a straight line.)
    • Bar Heights: 5FT, 6FT & 7FT
    • Color: Green or Blue
    • Weight: 215lbs
    • Assembly: NOT REQUIRED
    ANCHOR DETAILS

    This equipment must be surface mounted onto concrete.

    PRODUCT SPECS

    Product Specification:

    TriActive USA’s HBAR3 assumes three cross bars (5, 6, and 7 feet off ground on center) and four upright posts utilizing a slip fit tube that’s welded inside the cross bars and drilling holes for 3/8” bolts to secure the cross bars in place.

    HBAR3 assumes usage of American standard size tubing, namely:

    • 3” x 3” square tubing x 11ga
    • 1-1/4” OD round tubing x 11ga
    • 1.5” Round Tube 11ga
    • ¼” hot rolled flat bar.

    The part will have seven parts in total – 4 uprights and 3 cross bars.

    TriActive USA Fitness Equipment does not include any of the following:


    • exposed cables

    • hydraulics

    • plastic seating

    Powder Coating Specification:

    • Powder coating thickness 6-8 mils. Coatings are tested for 1000 hours of salt spray resistance.
    • Pre-treated
    • iron phosphate applied
    • zinc powder applied
    • functional powder applied
    • final TGIC powder coat is applied to provide outstanding weathering capabilities.

    Product Downloads:

    Product Specs

    Installation Sheet

    INSTALLATION RESOURCES

    Product Specification:

    TriActive USA’s HBAR3 assumes three cross bars (5, 6, and 7 feet off ground on center) and four upright posts utilizing a slip fit tube that’s welded inside the cross bars and drilling holes for 3/8” bolts to secure the cross bars in place.

    HBAR3 assumes usage of American standard size tubing, namely:

    • 3” x 3” square tubing x 11ga
    • 1-1/4” OD round tubing x 11ga
    • 1.5” Round Tube 11ga
    • ¼” hot rolled flat bar.

    The part will have seven parts in total – 4 uprights and 3 cross bars.

    TriActive USA Fitness Equipment does not include any of the following:


    • exposed cables

    • hydraulics

    • plastic seating

    Powder Coating Specification:

    • Powder coating thickness 6-8 mils. Coatings are tested for 1000 hours of salt spray resistance.
    • Pre-treated
    • iron phosphate applied
    • zinc powder applied
    • functional powder applied
    • final TGIC powder coat is applied to provide outstanding weathering capabilities.

    Product Downloads:

    Product Specs

    Installation Sheet

    TRIACTIVE VIDEO OVERVIEW

    TriActive Equipment Video Overview - HERE

    FREIGHT CONSIDERATIONS

    Our TriActive Equipment ships via LTL freight with liftgate service to ensure safe and convenient delivery. This method accommodates the size and weight of the equipment, providing a hassle-free drop-off directly to your location. Please ensure adequate space and access for delivery.

    WARRANTY

    Limited 10-year warranty on steel posts, welds, bars and other steel parts on all units that are fully welded, with non-moving parts.

    Limited 5-year warranty on steel posts, welds, bars and other steel parts for all units with moving parts.
