Spectrum Aquatics- Record Breaker Starting Platform, Single Post

Original price $4,012.00 - Original price $4,012.00
Original price
$4,012.00
$4,012.00 - $4,012.00
Current price $4,012.00

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 990-7508 or email Sales@Outdoorworkoutsupply.com.




STRENGTH. EXPERIENCE. FORM

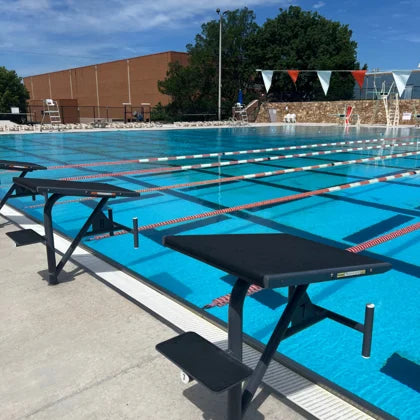

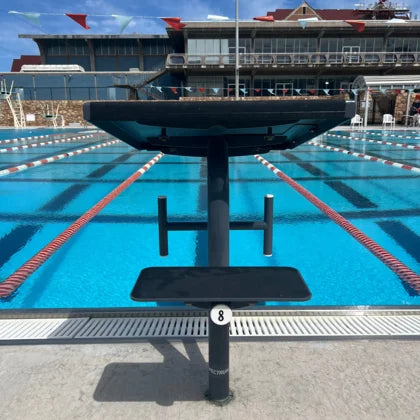

The Record Breaker Starting Block features a stainless steel top covered in a superior non-slip material. This swim starting block is easily upgradable to the Xcellerator® starting platform with the addition of the side handles and a track start footrest. Side or rear step options are available. The H-style backstroke bar give backstroke swimmers numerous gripping options, and our patented anti-wobble anchor promotes stability and ease of removal. Don’t forget to show your team spirit with the addition of a custom logo or powder coating the block to match your team’s colors.

Features:

  • Large 32″ x 24″ stainless steel top sloped at a 10° angle for optimal starting stances
  • Stainless steel top covered in a superior non-slip material
  • Easily upgradable to Xcellerator with the addition of the side handles & track start footrest
  • Single or dual post anchor with patented anti-wobble design allows for easy removal of blocks
  • Non-slip access step, available on side or rear
  • Side step accommodates anchor setbacks of 18″ to 36″
  • Rear step accommodates anchor setbacks of 30″ to 36″
  • Backstroke handles with versatile 18″ H bar
  • Stainless steel construction

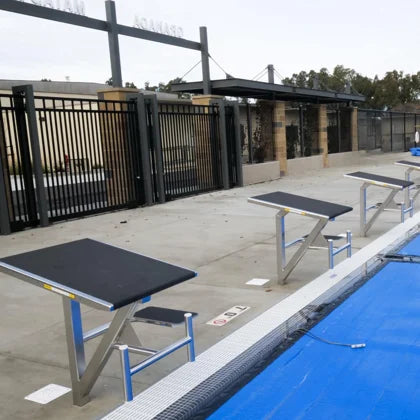

  • Available in round or square tubing
  • Easy-to-read, large numbers
  • Standard surface color is black or white, with custom colors, powder coat, and logo options available
  • Complies to World Aquatics, USA and NCAA Swimming, and NFHS regulations

ACCESSORIES (SOLD SEPARATELY)

  • Single Post Starting Platform Anchor, Part#21700-02
  • Single Post Anchor Alignment Tool, Part#21705
  • Anchor Set Tool, Part#35033
  • Square Single Post 2.5″ x 6″ Anchor, Part#193401
  • Maintenance Kit, Part#152155
  • Starting Block Soft Cover, Part#21400
  • Hard Starting Platform Cover, Part#153174
  • Stationary Backstroke Start Wedge, Part#1710083
  • Single Post Starting Platform Transportation Cart, Part#193404
  • Single Post Anchor Cap, Part#21702-04
  • 3/8" Spring Plunger Replacement Kit, Part#143186
  • 1/2" 316 Hex Spring Plunger, Part#193007
  • Jam Nut, Part#163007
  • 8"x10" Step, White, Part#26271
  • 23"x25" Footboard, White, Part#26270
  • 25"x32" Footboard, White, Part#42052
  • 1.5"x.083" Backstroke Bar Cap, Part#30000
  • 1"x.120" Wedge Adjustment Rail Cap, Part#20046
  • Powder Coat Touch Up Kit, Part#152153

Product Downloads

Brochures:

Competitive Pool Equipment Brochure

Stainless Steel Starting Block Brochure

Manual:

Single Post Anchor (Part # 21700)

Record Breaker Starting Platform Manual (Part # 57283)

Starting Platform Maintenance Tips

Specifications:

Spectrum Standard Warranty

SPEC - ANCHOR - SINGLE POST - 21700

SPEC - ANCHOR - SINGLE POST SET TOOL 2 - 35033

57283 Record Breaker Single Post Rear Step Product Specifications

57283 Record Breaker Single Post Side Step Product Specifications

POWDER COAT-SPEC

SPEC - ANCHOR - 6in SQUARE 2.5in

Measuring Guides:

Flange Mount Measuring Guide for Xcellerator® and Record Breaker Starting Platforms

Record Breaker Single Post Starting Platform Measuring Guide

Maintenance and Care:

Maintenance and Care for Stainless Steel Spectrum Starting Platforms

Maintenance and Care for Powder Coated Spectrum Starting Platforms



*ALSO AVAILABLE IN: RECORD BREAKER SINGLE SQUARE EXPANSION POST- CALL FOR QUOTE

SKU: 57283
